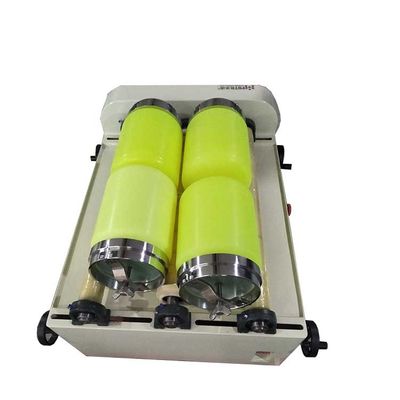

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4
4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4 4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4

Large Image :  4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4

Product Details:
Place of Origin: China
Brand Name: MITR
Certification: ISO9001:2008/CE
Model Number: GMS1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Package
Delivery Time: 7-15 working days
Payment Terms: TT,Western union
Supply Ability: 10set per week
Contact Now

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4

Description
Work Station: 4 Jar Capacity: 0.5-1L
Roller Layer: 1 Speed Range: 0-300 Rpm
Current: 220V Motor Power: 0.75Kw
Jar Material: Stainless Steel/nylon/alumina/pu/PTFE/ceramic Dimension: 580*510*410mm
Highlight:

lab jar rolling mill

,

horizontal ball mill



4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4





Main features

Frequency conversion control speed,program control,

Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.

The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar deformation.

Feeding granularity less than 3mm,soil <=10mm

Discharging granularity over 300 mesh



Application

Widely used in electronic, magnetic material, bio-medicine, ceramic glaze slurry, non-metal mine, new material and many more.



Technical parameter

Model: GMS1-4

Material: Stainless steel

Grinding jar volume: 0.5~1L

Grinding jar qty: 4pcs

Grinding layer: 1

Roller: 3

Roller DN*loading length: Φ40*180

Ajustable handwheel: 62-160

Ajustable jar DN: Φ50-Φ160

Jar speed: 0-300rpm

Electric: 220V

Power: 0.75Kw

Overall dimension: 580*520*410mm

Drive motion: Belt



4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4 0
